Double Convoluted Air Spring GMC 693230 1/4NPTF Port Size Cross Gart 271.2.209

Name: Double Convoluted Air Spring GMC 693230 14NPTF Port Size Cross Gart 2712209
Brand: AIRSUSTECH
Price: 1 USD

China Double Convoluted Air Spring GMC 693230 1/4NPTF Port Size Cross Gart 271.2.209 factory

Brand Name : AIRSUSTECH

Model Number : 2B7400

Certification : ISO/TS16949:2009

Place of Origin : Guangzhou, China

MOQ : 1 pieces

Price : Negotiable

Payment Terms : T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram

Supply Ability : 1000pcs/week

Delivery Time : 3-8 Working Days

Packaging Details : Strong Carton Box or as Customers Requirement

Supplier : AIRSUSTECH

Product Number : 2B7400

Plate Diameter : 228.6 MM

Air Hole : 1/4''-18NPT

Firestone : W01-358-7400

Origin : Guangzhou, China

Sample : Available

Function : Reduce Shock

Contact Now

Double Convoluted Air Spring GMC 693230 1/4NPTF Port Size Cross Gart 271.2.209

Product Information

Part Number	2B7400	Material	Rubber and Steel Plate
MOQ	1 Piece	Convolution	Two
Warranty	One Year	Sample	Avaliable

The Features of AIRSUSTECH 2B7400 Air Bag

This double convoluted air spring is manufactured from high-quality natural rubber with steel cover plates. It features a minimum height of 104 mm, a maximum height of 305 mm, and a working stroke of 201 mm.
For the 2B7400 model, the cover plate diameter is 231 mm, and the center-to-center distance is 157 mm. When the air pressure reaches 0.7 MPa, the maximum outer diameter of the rubber component reaches 325 mm.
The industrial convoluted rubber air spring operates via gas filling. Its air connection is 1/4 NPTF, and the screw nut size is ×3/8-16 UNC.

Other Manufacturer OEM Numbers

Manufacturer	Original Part No.	Manufacturer	Original Part No.
Firestone	W01-358-7400 W01-358-7422	Contitech	FD 330-22 313
Goodyear	2B12-309 2B12-316	Goodyear Bellows	578-92-3-309
Triangle	6316 / 4313	Fab Tek	04-0080
Freightliner	16-10769-000	GMC	693230
Granning	2726	Hendrickson	S1013
Neway	90557016	R & S Truck & Body	1027519
Watson & chalin	As0003	Ridewell	1003587400C
Dayton	354700	Volvo	3130488
Scania	670199	Gart	271.2.209

The Specifications of GART 271.2.209/2 T271/2

Cover plate diameter	228.6 mm
Air hole	1/4''-18NPT
Threaded hole	2×3/8''-16UNC
Center distance diameter	157.5 mm
Distance between air inlet and holes	73 mm
Bellows type	double convolutions

AIRSUSTECH Double Type Air Bags with 231MM Plate Diameter

2B7180	Firestone W01-358-7180/22 Contitech FD 330-22 363 Goodyear 2B12-425/311 Goodyear Bellows No. 578923309 Triangle 6316/4363 Airkraft 115061/3B-356
2B7181	Firestone W01-358-7181 Contitech FD 330-22 472 Goodyear 2B12-411 Goodyear Bellows No. 578923309 Triangle 6316/4472
2B7183	Firestone W01-358-7183 Contitech FD 330-22 471 Goodyear 2B12-412 Goodyear Bellows No. 578923309 Triangle 6316/4471
2B7344	Firestone W01-358-7344 Contitech FD 330-22 500 Goodyear 2B12-304 Triangle 6316/4500
2B7401	Firestone W01-358-7401 Contitech FD 330-22 337 Goodyear 2B12-320 Goodyear Bellows No. 578923309 Triangle 6316/4334
2B7403	Firestone W01-358-7403/22 Contitech FD 330-22 318 Goodyear 2B12-307/433/445 Goodyear Bellows No. 578923309

Product Images

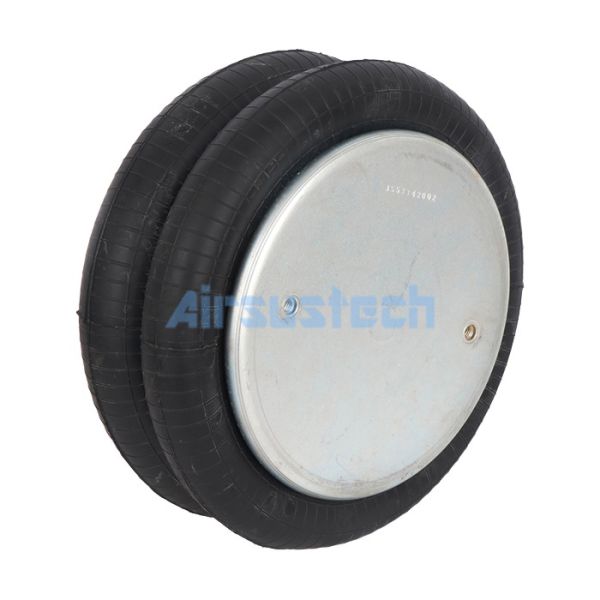

Double Convoluted Air Spring GMC 693230 1/4NPTF Port Size Cross Gart 271.2.209
